Sintered AlNiCo



Features of Sintered Alnico:
Manufactured by powder metallurgical process and sintered to produce near net shapes.Ideal for high temperature application up to 550℃. Good corrosion resistance. Fine crystalline metallic structure, density ranging from 6.9g/cm3-7.39cm3. A typical hardness of 50 Rockwell c only suitable for grinding, individual tailored products possible.

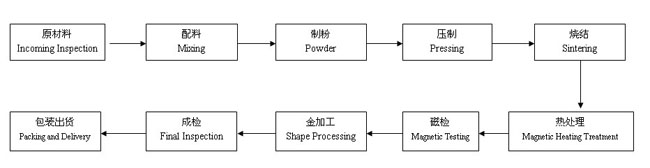

Manufacturing process:

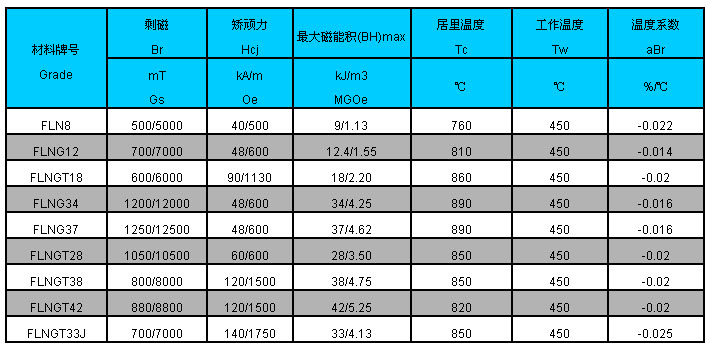

Magnetic properties parameters of Sintered ALNICO:


Note: Curie temperature and temperature coefficient are for reference only, but not as inspection base.


Cast AlNiCo


Features of Cast ALNICO
Manufactured by powder metallurgical process and sintered to produce near net shapes.Ideal for high temperature application up to 550℃. Good corrosion resistance. Fine crystalline metallic structure, density ranging from 6.9g/cm3-7.39cm3. A typical hardness of 50 Rockwell c only suitable for grinding, individual tailored products possible.

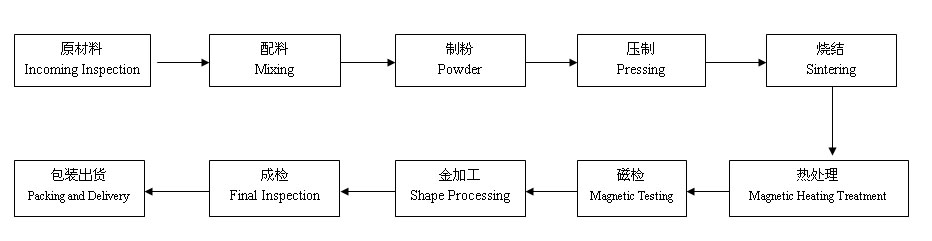

Manufacturing process:

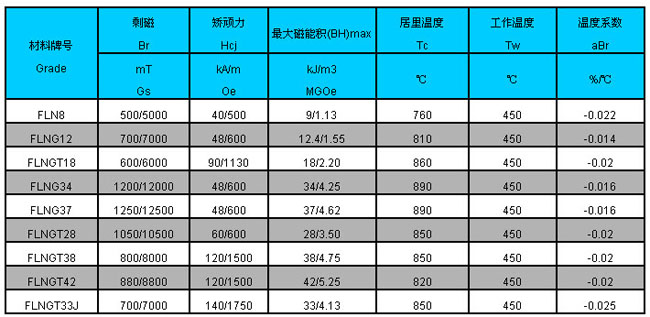

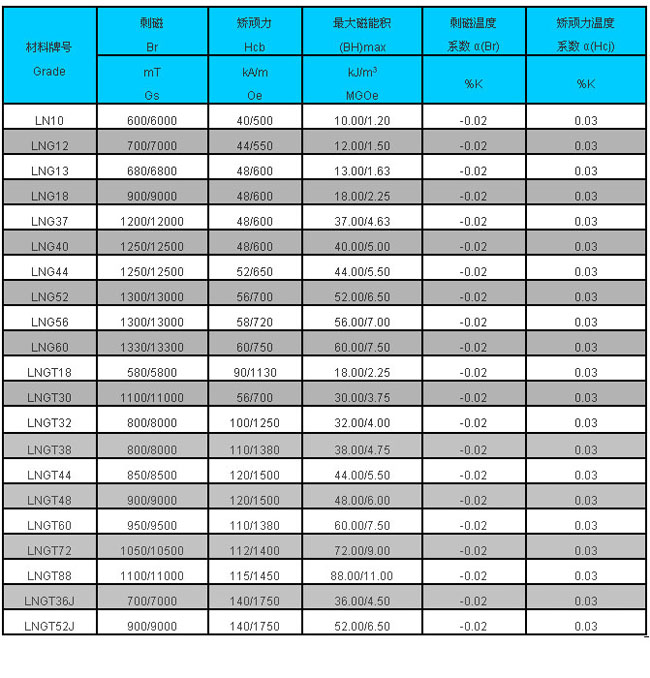

Magnetic properties parameters of Sintered ALNICO:


Note: Curie temperature and temperature coefficient are for reference only, but not as inspection base.
